———————— Advantages and Features ————————

① Integrated heavy-duty cast steel cutter head. Advantage 1: The knife holder is not easy to deform and is durable. Advantage 2: The lowest point of the knife edge is higher than 80% of the same types of equipment on the market, making it easier to cut large scrap steel and more goods.

② The fully enclosed adjustable guide rail also has an automatic injection lubrication system. Advantages: It effectively protects the cutter head for smooth shearing, is not easy to deflect, and cuts thick and thin materials without pressure.

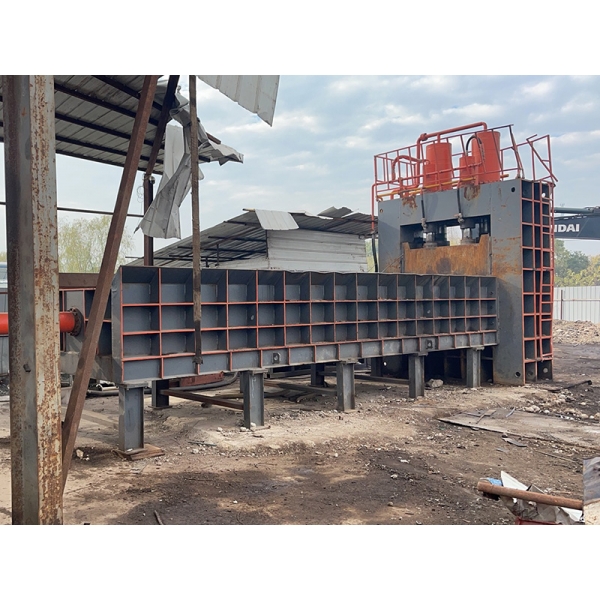

③ The gantry frame is welded and fixed with high-strength, multi-channel rib plates. Advantages: The overall structural strength of the frame is higher.

④ Our company all adopts a double-layer material box lining design with wear-resistant plates. Advantages: firstly, to increase the strength of the material box; secondly, to protect the bottom of the material box from wearing for a longer period of time. The wear-resistant strength far exceeds that of conventional alloy steel plates.

⑤ The side ribs of the material box are thicker and denser than the same type of equipment on the market. Advantages: anti-collision, durable, and non-deformable

⑥ The height of the pressing head is higher than that of the same type of equipment on the market. Advantages: It is easier to pre-press when processing large scrap steel and large quantities of goods.

⑦ The material box can be equipped with conventional open type or door cover type. Advantages of the door cover type: It is not easy to lift up and splash when dealing with aniseed, long scrap steel, thrown goods, etc. The door cover also adopts wear-resistant plate.

⑧ The hydraulic station adopts a hot and cold isolation system to speed up cooling, and a dual filtration system of oil suction filtration and return oil filtration to reduce pipeline clogging.

⑨ Adopt quick disassembly and assembly of valve block.

01. Intelligent control system provides the best cutting effect

The system's automatic detection technology can switch between fast and slow shearing speeds according to the actual feeding height during work, reducing the air speed of the cylinder, saving energy and time in the hydraulic system, and improving work efficiency.

02. Wear-resistant design of guide rails in key parts

The cast steel shear head slider guide rail is composed of high-strength wear-resistant alloy copper plate and triple-quenched alloy wear-resistant steel, which enables the equipment to be used under load in harsh environments and high friction requirements. The shear slider guide rail is automatically lubricated with oil to prevent Dry friction damages the guide rail, and an automatic alarm function for lubrication and oil cutoff is set up.

03. Equipment structure handling and processing

The main machine is all welded with new steel plates from the steel factory, and sharp edge burrs are removed. The main machine has excellent welding technology, regular appearance, high mechanical structure strength, good appearance and excellent quality. The gantry is integrally welded to remove stress, and the cast steel shearing head is tempered to remove stress and then undergoes large-scale boring and milling to ensure the installation accuracy of shear guide rails, pressure guide rails, oil cylinders and other components, and greatly improve the service life of the equipment.

04. Improved shearing ability

The cutting angle reaches 11 degrees, and the cutting capacity is about 20% higher than that of ordinary gantry shears.

———————— Operating Procedures ————————

Model	Shear pressure （T）	Blade width （mm）	Capacity/Day （T）	Box length×height （mm）
Q91Y-250	250	1200	10～20	5000×400
Q91Y-315	315	1400	15～30	6000×500
Q91Y-400	400	1400	20～40	6000×550
Q91Y-500	500	1600	30～60	6000×600
Q91Y-630	630	1800	40～70	8000×800
Q91Y-800	800	2000	50～80	8000×900
Q91Y-1000	1000	2000	70～100	9000×1000
Q91Y-1250	1250	2500	100～150	9000×1100
Q91Y-1500	1500	2500	150～230	10000×1300
Q91Y-2000	2000	3000	280～400	10000×1500

Note1: The production capacity varies slightly depending on the thickness of the scrap metal being processed.

Note 2: The above only shows some specifications, please contact us for more information

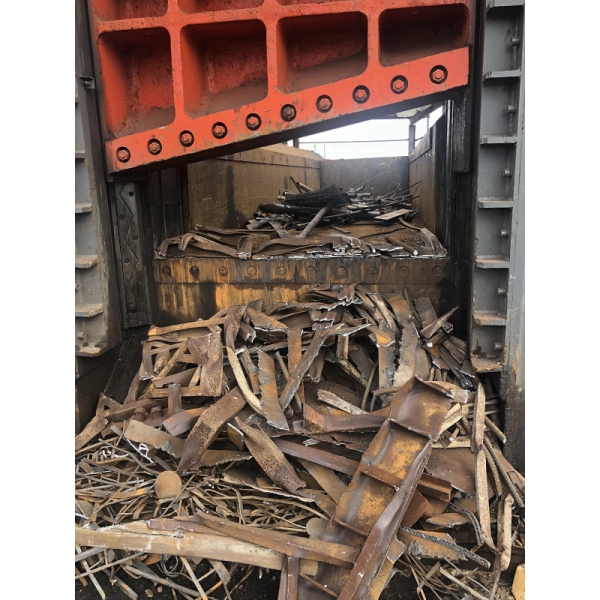

1. This equipment is mainly used in the waste material recycling and processing industry. Small and medium-sized steel plants can cold shear scrap metals with various cross-section shapes such as round steel, square steel, channel steel, angle steel, I-beam, steel plate, steel pipe and other scrap metals.
2. Low noise, smooth movement, safe operation and easy to implement overload protection.
3. This equipment has manual, semi-automatic and automatic functions, and the operation control is convenient and simple. The scissor mouth can cut and stop at any position during the working process.
And according to the size of the material to be cut, the size of the cutting opening and size can be controlled arbitrarily to achieve high work efficiency.
