Copper chips metal briquette

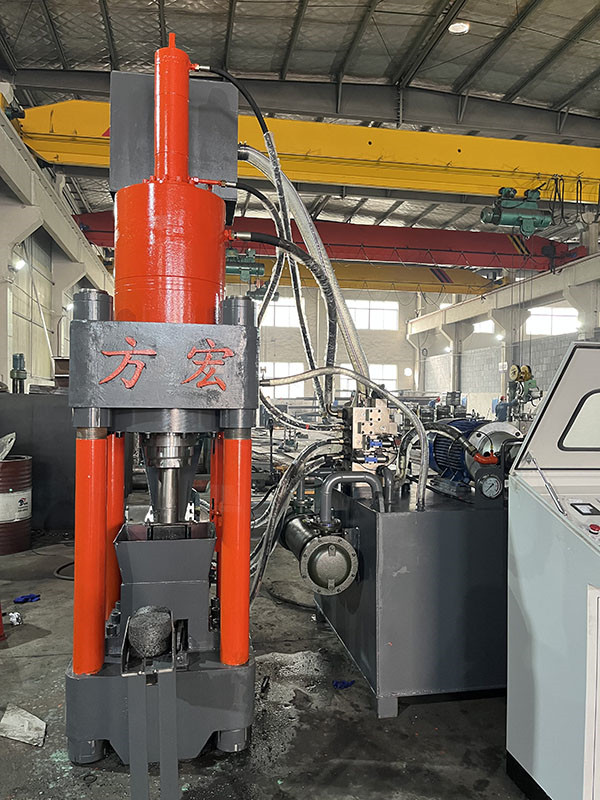

The metal briquetting machine squeezes the lubricating oil out of metal chips and compresses them into dense briquettes for easy storage, transportation and recycling.

E-mail：mark@fanghongmachine.com

Whatsapp：+8617798736072

Linkedin：www.linkedin.com/in/mark-xu-06279525a

Detail

———————— Product Usage ————————

It is mainly used to directly cold-press metal scraps such as cast iron scraps, steel scraps, copper scraps, aluminum scraps, high-quality mineral powder and other metal scraps through high pressure into cylindrical or other shaped cakes to facilitate storage and transportation and reduce the recycling process. Losses in transportation and smelting.

———————— Technical Parameters ————————

Model	Cylinder pressure	Press cake size Φ diameter	Motor	Yield (adjusting)
Y83-250	250T	Φ110mm	18.5KW	0.9~1 Tons/hour（Cast iron chips）
Y83-360	360T	Φ120/140mm	30KW	1~1.1 Tons/hour（Cast iron chips）
Y83-500	500T	Φ160/180mm	45KW	1.7~2.3 Tons/hour（Cast iron chips）
Y83-630	630T	Φ180/200mm	55KW	2~3 Tons/hour（Cast iron chips）
Y83-800	800T	Φ200/240mm	37K×2	3~4 Tons/hour（Cast iron chips）
Y83-1000	1000T	Φ260/280mm	45KW×2	8~10 Tons/hour（Cast iron chips）
Y83-1250	1250T	Φ280/300/320mm	90KW×4	18~22 Tons/hour（Cast iron chips）
Y83-1500	1500T	Φ320/340/360mm	90KW×5	28~32 Tons/hour（Cast iron chips）
Y83-2000	2000T	Φ360/380/400mm	90KW×6	36~44 Tons/hour（Cast iron chips）
